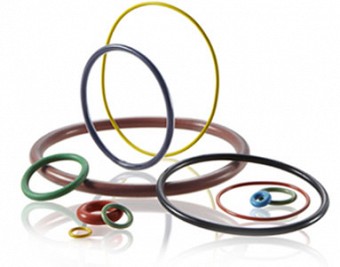

O-Rings & Related  Products

O-Rings

Among the myriad of different O-Ring dimension standards available, the AS568 is the United States’ most popular. It was previously designated as ARP 568 and is now maintained by the Society of Automotive Engineers. AS568 lists 369 different sizes of O-Rings with corresponding tolerances and dimensions. This standard features O-Rings in five different cross-sections, with inside diameters that range from 1/32” to 26”. Tube fitting boss seals are also included in AS568 as “-900” series O-Ring sizes, intended for use in MS33649 (superseded now by SAE-AS5202) straight thread tube fittings.

In addition, J Royal offers a wide variety of metric and non-standard O-Rings. As a subset of the available metric sizes, J Royal stocks several Japanese Industrial Standard (JIS B2401) sizes. If you require a special size or specific chemical resistance, J Royal can create custom O-Rings, specially made to your specific requirements.

AS568 O-Rings

  Dimensions in Inches   Nominal Size (reference only)
AS568C I.D. ± C/S Vol. in
Cu. Inches
I.D. O.D. C/S

CROSS SECTION .070" ± .003"

001 .029 .004 .040 .0003 1/32 3/32 1/32
002 .042 .004 .050 .0006 3/64 9/64 3/64
003 .056 .004 .060 .0010 1/16 3/16 1/16
004 .070 .005 .070 .0017 5/64 13/64 1/16
005 .101 .005 .070 .0021 3/32 7/32 1/16
006 .114 .005 .070 .0022 1/8 1/4 1/16
007 .145 .005 .070 .0026 5/32 9/32 1/16
008 .176 .005 .070 .0030 3/16 5/16 1/16
009 .208 .005 .070 .0034 7/32 11/32 1/16
010 .239 .005 .070 .0037 1/4 3/8 1/16
011 .301 .005 .070 .0045 5/16 7/16 1/16
012 .364 .005 .070 .0052 3/8 1/2 1/16
013 .426 .005 .070 .0060 7/16 9/16 1/16
014 .489 .005 .070 .0068 1/2 5/8 1/16
015 .551 .007 .070 .0075 9/16 11/16 1/16
016 .614 .009 .070 .0083 5/8 3/4 1/16
017 .676 .009 .070

.0090

11/16 13/16 1/16
018 .739 .009 .070 .0098 3/4 7/8 1/16
019 .801 .009 .070 .0105 13/16 15/16 1/16
020 .864 .009 .070 .0113 7/8 1 1/16
021 .926 .009 .070 .0120 15/16 1-1/16 1/16
022 .989 .010 .070 .0128 1 1-1/8 1/16
023 1.051 .010 .070 .0136 1-1/16 1-3/16 1/16
024 1.114 .010 .070 .0143 1-1/8 1-1/4 1/16
025 1.176 .011 .070 .0151 1-3/16 1-5/16 1/16
026 1.239 .011 .070 .0158 1-1/4 1-3/8 1/16
027 1.301 .011 .070 .0166 1-5/16 1-7/16 1/16
028 1.364 .013 .070 .0173 1-3/8 1-1/2 1/16
029 1.489 .013 .070 .0188 1-1/2 1-5/8 1/16
030 1.614 .013 .070 .0204 1-5/8 1-3/4 1/16
031 1.739 .015 .070 .0219 1-3/4 1-7/8 1/16
032 1.864 .015 .070 .0234 1-7/8 2 1/16
033 1.989 .018 .070 .0249 2 2-1/8 1/16
034 2.114 .018 .070 .0264 2-1/8 2-1/4 1/16
035 2.239 .018 .070 .0279 2-1/4 2-3/8 1/16
036 2.364 .018 .070 .0294 2-3/8 2-1/2 1/16
037 2.489 .018 .070 .0309 2-1/2 2-5/8 1/16
038 2.614 .020 .070 .0324 2-5/8 2-3/4 1/16
039 2.739 .020 .070 .0340 2-3/4 2-7/8 1/16
040 2.864 .020 .070 .0355 2-7/8 3 1/16
041 2.989 .024 .070 .0370 3 3-1/8 1/16
042 3.239 .024 .070 .0400 3-1/4 3-3/8 1/16
043 3.489 .024 .070 .0430 3-1/2 3-5/8 1/16
044 3.739 .027 .070 .0460 3-3/4 3-7/8 1/16
045 3.989 .027 .070 .0491 4 4-1/8 1/16
046 4.239 .030 .070 .0521 4-1/4 4-3/8 1/16
047 4.489 .030 .070 .0551 4-1/2 4-5/8 1/16
048 4.739 .030 .070 .0581 4-3/4 4-7/8 1/16
049 4.989 .037 .070 .0612 5 5-1/8 1/16
050 5.239 .037 .070 .0643 5-1/4 5-3/8 1/16

CROSS SECTION .103" ± .003"

102 .049 .005 .103 .0040 1/16 1/4 3/32
103 .081 .005 .103 .0048 3/32 9/32 3/32
104 .112 .005 .103 .0056 1/8 5/16 3/32
105 .143 .005 .103 .0064 5/32 11/32 3/32
106 .174 .005 .103 .0072 3/16 3/8 3/32
107 .206 .005 .103 .0080 7/32 13/32 3/32
108 .237 .005 .103 .0088 1/4 7/16 3/32
109 .299 .005 .103 .0105 5/16 1/2 3/32
110 .362 .005 .103 .0122 3/8 9/16 3/32
111 .424 .005 .103 .0138 7/16 5/8 3/32
112 .487 .005 .103 .0154 1/2 11/16 3/32
113 .549 .007 .103 .0171 9/16 3/4 3/32
114 .612 .009 .103 .0187 5/8 13/16 3/32
115 .674 .009 .103 .0203 11/16 7/8 3/32
116 .737 .009 .103 .0220 3/4 15/16 3/32
117 .799 .010 .103 .0236 13/16 1 3/32
118 .862 .010 .103 .0253 7/8 1-1/16 3/32
119 .924 .010 .103 .0269 15/16 1-1/8 3/32
120 .987 .010 .103 .0285 1 1-3/16 3/32
121 1.049 .010 .103 .0302 1-1/16 1-1/4 3/32
122 1.112 .010 .103 .0318 1-1/8 1-5/16 3/32
123 1.174 .012 .103 .0334 1-3/16 1-3/8 3/32
124 1.237 .012 .103 .0351 1-1/4 1-7/16 3/32
125 1.299 .012 .103 .0367 1-5/16 1-1/2 3/32
126 1.362 .012 .103 .0383 1-3/8 1-9/16 3/32
127 1.424 .012 .103 .0400 1-7/16 1-5/8 3/32
128 1.487 .012 .103 .0416 1-1/2 1-11/16 3/32
129 1.549 .015 .103 .0432 1-9/16 1-3/4 3/32
130 1.612 .015 .103 .0449 1-5/8 1-13/16 3/32
131 1.674 .015 .103 .0465 1-11/16 1-7/8 3/32
132 1.737 .015 .103 .0482 1-3/4 1-15/16 3/32
133 1.799 .015 .103 .0498 1-13/16 2 3/32
134 1.862 .015 .103 .0514 1-7/8 2-1/16 3/32
135 1.925 .017 .103 .0531 1-15/16 2-1/8 3/32
136 1.987 .017 .103 .0547 2 2-3/16 3/32
137 2.050 .017 .103 .0564 2-1/16 2-1/4 3/32
138 2.112 .017 .103 .0580 2-1/8 2-5/16 3/32
139 2.175 .017 .103 .0596 2-3/16 2-3/8 3/32
140 2.237 .017 .103 .0612 2-1/4 2-7/16 3/32
141 2.300 .020 .103 .0629 2-5/16 2-1/2 3/32
142 2.362 .020 .103 .0645 2-3/8 2-9/16 3/32
143 2.425 .020 .103 .0662 2-7/16 2-5/8 3/32
144 2.487 .020 .103 .0678 2-1/2 2-11/16 3/32
145 2.55 .020 .103 .0694 2-9/16 2-3/4 3/32
146 2.612 .020 .103 .0711 2-5/8 2-13/16 3/32
147 2.675 .022 .103 .0727 2-11/16 2-7/8 3/32
148 2.737 .022 .103 .0743 2-3/4 2-15/16 3/32
149 2.800 .022 .103 .0760 2-13/16 3 3/32
150 2.862 .022 .103 .0776 2-7/8 3-1/16 3/32
151 2.987 .024 .103 .0809 3 3-3/16 3/32
152 3.237 .024 .103 .0874 3-1/4 3-7/16 3/32
153 3.487 .024 .103 .0940 3-1/2 3-11/16 3/32
154 3.737 .028 .103 .1005 3-3/4 3-15/16 3/32
155 3.987 .028 .103 .1071 4 4-3/16 3/32
156 4.237 .030 .103 .1136 4-1/4 4-7/16 3/32
157 4.487 .030 .103 .1202 4-1/2 4-11/16 3/32
158 4.737 .030 .103 .1267 4-3/4 4-15/16 3/32
159 4.987 .035 .103 .1332 5 5-3/16 3/32
160 5.237 .035 .103 .1398 5-1/4 5-7/16 3/32
161 5.487 .035 .103 .1463 5-1/2 5-11/16 3/32
162 5.737 .035 .103 .1529 5-3/4 5-15/16 3/32
163 5.987 .035 .103 .1594 6 6-3/16 3/32
164 6.237 .040 .103 .1660 6-1/4 6-7/16 3/32
165 6.487 .040 .103 .1726 6-1/2 6-11/16 3/32
166 6.737 .040 .103 .1791 6-3/4 6-15/16 3/32
167 6.987 .040 .103 .1856 7 7-3/16 3/32
168 7.237 .045 .103 .1921 7-1/4 7-7/16 3/32
169 7.487 .045 .103 .1986 7-1/2 7-11/16 3/32
170 7.737 .045 .103 .2052 7-3/4 7-15/16 3/32
171 7.987 .045 .103 .2117 8 8-3/16 3/32
172 8.237 .050 .103 .2182 8-1/4 8-7/16 3/32
173 8.487 .050 .103 .2247 8-1/2 8-11/16 3/32
174 8.737 .050 .103 .2313 8-3/4 8-15/16 3/32
175 8.897 .050 .103 .2378 9 9-3/16 3/32
176 9.237 .055 .103 .2443 9-1/4 9-7/16 3/32
177 9.487 .055 .103 .2508 9-1/2 9-11/16 3/32
178 9.737 .055 .103 .2574 9-3/4 9-15/16 3/32

CROSS SECTION .139" ± .004"

201 .171 .005 .139 .0148 3/16 7/16 1/8
202 .234 .005 .139 .0178 1/4 1/2 1/8
203 .296 .005 .139 .0207 5/16 9/16 1/8
204 .359 .005 .139 .0237 3/8 5/8 1/8
205 .421 .005 .139 .0267 7/16 11/16 1/8
206 .484 .005 .139 .0297 1/2 3/4 1/8
207 .546 .007 .139 .0327 9/16 13/16 1/8
208 .609 .009 .139 .0357 5/8 7/8 1/8
209 .671 .009 .139 .0386 11/16 15/16 1/8
210 .734 .010 .139 .0416 3/4 1 1/8
211 .796 .010 .139 .0446 13/16 1-1/16 1/8
212 .859 .010 .139 .0476 7/8 1-1/8 1/8
213 .921 .010 .139 .0505 15/16 1-3/16 1/8
214 .984 .010 .139 .0535 1 1-1/4 1/8
215 1.046 .010 .139 .0565 1-1/16 1-5/16 1/8
216 1.109 .012 .139 .0595 1-1/8 1-3/8 1/8
217 1.171 .012 .139 .0624 1-3/16 1-7/16 1/8
218 1.234 .012 .139 .0656 1-1/4 1-1/2 1/8
219 1.296 .012 .139 .0684 1-5/16 1-9/16 1/8
220 1.359 .012 .139 .0714 1-3/8 1-5/8 1/8
221 1.421 .012 .139 .0744 1-7/16 1-11/16 1/8
222 1.484 .015 .139 .0774 1-1/2 1-3/4 1/8
223 1.609 .015 .139 .0833 1-5/8 1-7/8 1/8
224 1.734 .015 .139 .0893 1-3/4 2 1/8
225 1.859 .018 .139 .0952 1-7/8 2-1/8 1/8
226 1.984 .018 .139 .1012 2 2-1/4 1/8
227 2.109 .018 .139 .1072 2-1/8 2-3/8 1/8
228 2.234 .020 .139 .1131 2-1/4 2-1/2 1/8
229 2.359 .020 .139 .1191 2-3/8 2-5/8 1/8
230 2.484 .020 .139 .1250 2-1/2 2-3/4 1/8
231 2.609 .020 .139 .1310 2-5/8 2-7/8 1/8
232 2.734 .024 .139 .1370 2-3/4 3 1/8
233 2.859 .024 .139 .1429 2-7/8 3-1/8 1/8
234 2.984 .024 .139 .1489 3 3-1/4 1/8
235 3.109 .024 .139 .1548 3-1/8 3-3/8 1/8
236 3.234 .024 .139 .1608 3-1/4 3-1/2 1/8
237 3.359 .024 .139 .1668 3-3/8 3-5/8 1/8
238 3.484 .024 .139 .1727 3-1/2 3-3/4 1/8
239 3.609 .028 .139 .1787 3-5/8 3-7/8 1/8
240 3.734 .028 .139 .1846 3-3/4 4 1/8
241 3.859 .028 .139 .1906 3-7/8 4-1/8 1/8
242 3.984 .028 .139 .1966 4 4-1/4 1/8
243 4.109 .028 .139 .2025 4-1/8 4-3/8 1/8
244 4.234 .030 .139 .2085 4-1/4 4-1/2 1/8
245 4.359 .030 .139 .2144 4-3/8 4-5/8 1/8
246 4.484 .030 .139 .2204 4-1/2 4-3/4 1/8
247 4.609 .030 .139 .2264 4-5/8 4-7/8 1/8
248 4.734 .030 .139 .2323 4-3/4 5 1/8
249 4.859 .035 .139 .2383 4-7/8 5-1/8 1/8
250 4.984 .035 .139 .2442 5 5-1/4 1/8
251 5.109 .035 .139 .2502 5-1/8 5-3/8 1/8
252 5.234 .035 .139 .2561 5-1/4 5-1/2 1/8
253 5.359 .035 .139 .2621 5-3/8 5-5/8 1/8
254 5.484 .035 .139 .2681 5-1/2 5-3/4 1/8
255 5.609 .035 .139 .2740 5-5/8 5-7/8 1/8
256 5.734 .035 .139 .2800 5-3/4 6 1/8
257 5.859 .035 .139 .2859 5-7/8 6-1/8 1/8
258 5.984 .035 .139 .2919 6 6-1/4 1/8
259 6.234 .040 .139 .3038 6-1/4 6-1/2 1/8
260 6.484 .040 .139 .3157 6-1/2 6-3/4 1/8
261 6.734 .040 .139 .3276 6-3/4 7 1/8
262 6.984 .040 .139 .3396 7 7-1/4 1/8
263 7.234 .045 .139 .3515 7-1/4 7-1/2 1/8
264 7.484 .045 .139 .3634 7-1/2 7-3/4 1/8
265 7.734 .045 .139 .3753 7-3/4 8 1/8
266 7.984 .045 .139 .3872 8 8-1/4 1/8
267 8.234 .050 .139 .3992 8-1/4 8-1/2 1/8
268 8.484 .050 .139 .4111 8-1/2 8-3/4 1/8
269 8.734 .050 .139 .4230 8-3/4 9 1/8
270 8.984 .050 .139 .4349 9 9-1/4 1/8
271 9.234 .055 .139 .4468 9-1/4 9-1/2 1/8
272 9.484 .055 .139 .4588 9-1/2 9-3/4 1/8
273 9.734 .055 .139 .4707 9-3/4 10 1/8
274 9.984 .055 .139 .4826 10 10-1/4 1/8
275 10.484 .055 .139 .5064 10-1/2 10-3/4 1/8
276 10.984 .065 .139 .5303 11 11-1/4 1/8
277 11.484 .065 .139 .5541 11-1/2 11-3/4 1/8
278 11.984 .065 .139 .5779 12 12-1/4 1/8
279 12.984 .065 .139 .6256 13 13-1/4 1/8
280 13.984 .065 .139 .6733 14 14-1/4 1/8
281 14.984 .065 .139 .7210 15 15-1/4 1/8
282 15.955 .075 .139 .7672 16 16-1/4 1/8
283 16.955 .080 .139 .8149 17 17-1/4 1/8
284 17.955 .085 .139 .8627 18 18-1/4 1/8

CROSS SECTION .210" ± .005"

309 .412 .005 .210 .0677 7/16 13/16 3/16
310 .475 .005 .210 .0745 1/2 7/8 3/16
311 .537 .007 .210 .0813 9/16 15/16 3/16
312 .600 .009 .210 .0881 5/8 1 3/16
313 .662 .009 .210 .0949 11/16 1-1/16 3/16
314 .725 .010 .210 .1017 3/4 1-1/8 3/16
315 .787 .010 .210 .1085 13/16 1-3/16 3/16
316 .850 .010 .210 .1153 7/8 1-1/4 3/16
317 .912 .010 .210 .1221 15/16 1-5/16 3/16
318 .975 .010 .210 .1289 1 1-3/8 3/16
319 1.037 .010 .210 .1357 1-1/16 1-/7/16 3/16
320 1.100 .012 .210 .1425 1-1/8 1-1/2 3/16
321 1.162 .012 .210 .1493 1-3/16 1-9/16 3/16
322 1.225 .012 .210 .1561 1-1/4 1-5/8 3/16
323 1.287 .012 .210 .1629 1-5/16 1-11/16 3/16
324 1.350 .012 .210 .1697 1-3/8 1-3/4 3/16
325 1.475 .015 .210 .1833 1-1/2 1-7/8 3/16
326 1.600 .015 .210 .1970 1-5/8 2 3/16
327 1.725 .015 .210 .2106 1-3/4 2-1/8 3/16
328 1.850 .015 .210 .2242 1-7/8 2-1/4 3/16
329 1.975 .018 .210 .2378 2 2-3/8 3/16
330 2.100 .018 .210 .2514 2-1/8 2-1/2 3/16
331 2.225 .018 .210 .2650 2-1/4 2-5/8 3/16
332 2.350 .018 .210 .2789 2-3/8 2-3/4 3/16
333 2.475 .020 .210 .2922 2-1/2 2-7/8 3/16
334 2.600 .020 .210 .3058 2-5/8 3 3/16
335 2.725 .020 .210 .3194 2-3/4 3-1/8 3/16
336 2.850 .020 .210 .3330 2-7/8 3-1/4 3/16
337 2.975 .024 .210 .3466 3 3-3/8 3/16
338 3.100 .024 .210 .3602 3-1/8 3-1/2 3/16
339 3.225 .024 .210 .3738 3-1/4 3-5/8 3/16
340 3.350 .024 .210 .3874 3-3/8 3-3/4 3/16
341 3.475 .024 .210 .4010 3-1/2 3-7/8 3/16
342 3.600 .028 .210 .4146 3-5/8 4 3/16
343 3.725 .028 .210 .4282 3-3/4 4-1/8 3/16
344 3.850 .028 .210 .4418 3-7/8 4-1/4 3/16
345 3.975 .028 .210 .4554 4 4-3/8 3/16
346 4.100 .028 .210 .4690 4-1/8 4-1/2 3/16
347 4.225 .030 .210 .4826 4-1/4 4-5/8 3/16
348 4.350 .030 .210 .4962 4-3/8 4-3/4 3/16
349 4.475 .030 .210 .5098 4-1/2 4-7/8 3/16
350 4.600 .030 .210 .5234 4-5/8 5 3/16
351 4.725 .030 .210 .5370 4-3/4 5-1/8 3/16
352 4.850 .030 .210 .5506 4-7/8 5-1/4 3/16
353 4.975 .037 .210 .5642 5 5-3/8 3/16
354 5.100 .037 .210 .5778 5-1/8 5-1/2 3/16
355 5.225 .037 .210 .5914 5-1/4 5-5/8 3/16
356 5.350 .037 .210 .6050 5-3/8 5-3/4 3/16
357 5.475 .037 .210 .6186 5-1/2 5-7/8 3/16
358 5.600 .037 .210 .6322 5-5/8 6 3/16
359 5.725 .037 .210 .6458 5-3/4 6-1/8 3/16
360 5.850 .037 .210 .6594 5-7/8 6-1/4 3/16
361 5.975 .037 .210 .6730 6 6-3/8 3/16
362 6.225 .040 .210 .7002 6-1/4 6-5/8 3/16
363 6.475 .040 .210 .7274 6-1/2 6-7/8 3/16
364 6.725 .040 .210 .7546 6-3/4 7-1/8 3/16
365 6.975 .040 .210 .7818 7 7-3/8 3/16
366 7.225 .045 .210 .8090 7-1/4 7-5/8 3/16
367 7.475 .045 .210 .8362 7-1/2 7-7/8 3/16
368 7.725 .045 .210 .8634 7-3/4 8-1/8 3/16
369 7.975 .045 .210 .8906 8 8-3/8 3/16
370 8.225 .050 .210 .9178 8-1/4 8-5/8 3/16
371 8.475 .050 .210 .9450 8-1/2 8-7/8 3/16
372 8.725 .050 .210 .9722 8-3/4 9-1/8 3/16
373 8.975 .050 .210 .9994 9 9-3/8 3/16
374 9.225 .055 .210 1.0266 9-1/4 9-5/8 3/16
375 9.475 .055 .210 1.0538 9-1/2 9-7/8 3/16
376 9.725 .055 .210 1.0810 9-3/4 10-1/8 3/16
377 9.975 .055 .210 1.1083 10 10-3/8 3/16
378 10.475 .060 .210 1.1627 10-1/2 10-7/8 3/16
379 10.975 .060 .210 1.2171 11 11-3/8 3/16
380 11.475 .065 .210 1.2737 11-1/2 11-7/8 3/16
381 11.975 .065 .210 1.2715 12 12-3/8 3/16
382 12.975 .065 .210 1.3259 13 13-3/8 3/16
383 13.975 .070 .210 1.4347 14 14-3/8 3/16
384 14.975 .070 .210 1.5435 15 15-3/8 3/16
385 15.955 .075 .210 1.6523 16 16-3/8 3/16
386 16.955 .080 .210 1.7590 17 17-3/8 3/16
387 17.955 .085 .210 1.9766 18 18-3/8 3/16
388 18.955 .090 .210 2.0854 19 19-3/8 3/16
389 19.955 .095 .210 2.1942 20 20-3/8 3/16
390 20.955 .095 .210 2.3030 21 21-3/8 3/16
391 21.955 .100 .210 2.4118 22 22-3/8 3/16
392 22.940 .105 .210 2.5190 23 23-3/8 3/16
393 23.940 .110 .210 2.6278 24 24-3/8 3/16
394 24.940 .115 .210 2.7366 25 25-3/8 3/16
395 25.940 .120 .210 2.8454 26 26-3/8 3/16

CROSS SECTION .275" ± .006"

425 4.475 .033 .275 .8863 4-1/2 5 1/4
426 4.600 .033 .275 .9097 4-5/8 5-1/8 1/4
427 4.725 .033 .275 .9330 4-3/4 5-1/4 1/4
428 4.850 .033 .275 .9563 4-7/8 5-3/8 1/4
429 4.975 .037 .275 .9796 5 5-1/2 1/4
430 5.100 .037 .275 1.0030 5-1/8 5-5/8 1/4
431 5.225 .037 .275 1.0263 5-1/4 5-3/4 1/4
432 5.350 .037 .275 1.0496 5-3/8 5-7/8 1/4
433 5.475 .037 .275 1.0729 5-1/2 6 1/4
434 5.600 .037 .275 1.0962 5-5/8 6-1/8 1/4
435 5.725 .037 .275 1.1196 5-3/4 6-1/4 1/4
436 5.850 .037 .275 1.1429 5-7/8 6-3/8 1/4
437 5.975 .037 .275 1.1662 6 6-1/2 1/4
438 6.225 .040 .275 1.2129 6-1/4 6-3/4 1/4
439 6.475 .040 .275 1.2595 6-1/2 7 1/4
440 6.725 .040 .275 1.3062 6-3/4 7-1/4 1/4
441 6.975 .040 .275 1.3528 7 7-1/2 1/4
442 7.225 .045 .275 1.3995 7-1/4 7-3/4 1/4
443 7.475 .045 .275 1.4461 7-1/2 8 1/4
444 7.725 .045 .275 1.4928 7-3/4 8-1/4 1/4
445 7.975 .045 .275 1.5394 8 8-1/2 1/4
446 8.475 .035 .275 1.6327 8-1/2 9 1/4
447 8.975 .055 .275 1.7260 9 9-1/2 1/4
448 9.475 .055 .275 1.8193 9-1/2 10 1/4
449 9.975 .055 .275 1.9126 10 10-1/2 1/4
450 10.475 .060 .275 2.0059 10-1/2 11 1/4
451 10.975 .060 .275 2.0092 11 11-1/2 1/4
452 11.475 .060 .275 2.1925 11-1/2 12 1/4
453 11.975 .060 .275 2.2858 12 12-1/2 1/4
454 12.475 .060 .275 2.3791 12-1/2 13 1/4
455 12.975 .060 .275 2.4724 13 13-1/2 1/4
456 13.475 .070 .275 2.5657 13-1/2 14 1/4
457 13.975 .070 .275 2.6590 14 14-1/2 1/4
458 14.475 .070 .275 2.7523 14-1/2 15 1/4
459 14.975 .070 .275 2.8456 15 15-1/2 1/4
460 15.475 .070 .275 2.9389 15-1/2 16 1/4
461 15.955 .075 .275 3.0285 16 16-1/2 1/4
462 16.455 .075 .275 3.1218 16-1/2 17 1/4
463 16.955 .080 .275 3.2151 17 17-1/2 1/4
464 17.455 .085 .275 3.3084 17-1/2 18 1/4
465 17.955 .085 .275 3.4017 18 18-1/2 1/4
466 18.455 .085 .275 3.4950 18-1/2 19 1/4
467 18.955 .090 .275 3.5883 19 19-1/2 1/4
468 19.455 .090 .275 3.6816 19-1/2 20 1/4
469 19.955 .095 .275 3.7749 20 20-1/2 1/4
470 20.955 .095 .275 3.9615 21 21-1/2 1/4
471 21.955 .100 .275 4.1481 22 22-1/2 1/4
472 22.940 .105 .275 4.3319 23 23-1/2 1/4
473 23.940 .110 .275 4.5185 24 24-1/2 1/4
474 24.940 .115 .275 4.7051 25 25-1/2 1/4
475 25.940 .120 .275 4.8917 26 26-1/2 1/4
